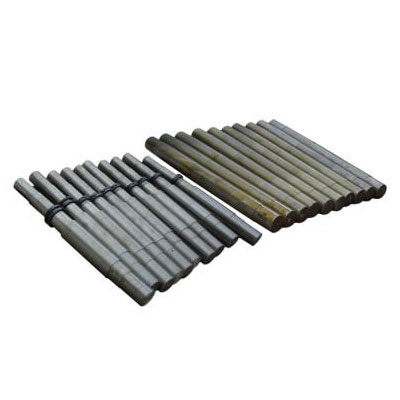

Hammer shaft

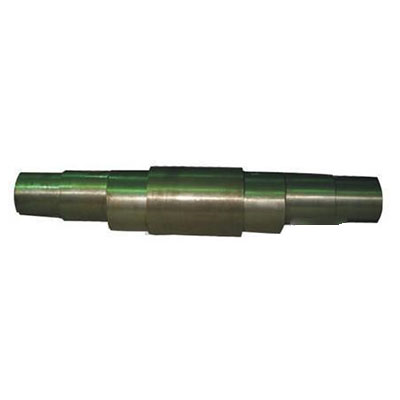

Hammer shaft

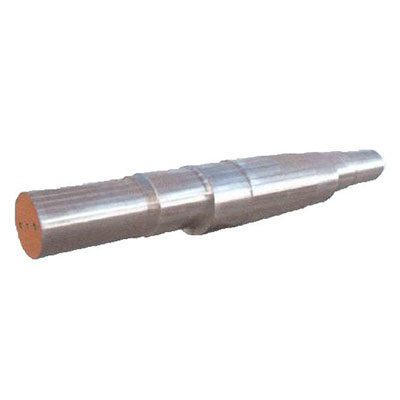

Hammer shaft

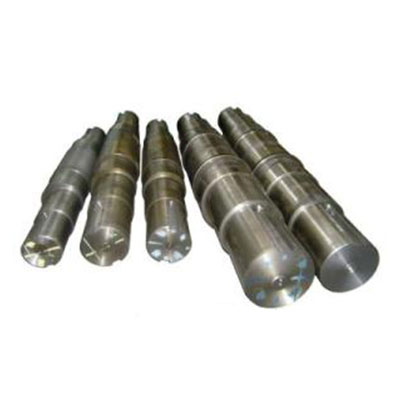

Hammer shaft
The hammer shaft is assembled on the rotor and hangs several hammers horizontally. During the operation of the crusher, it bears the mutual grinding between the hammer rings. It is also a wearing part of the crusher, and the quality of the hammer also seriously affects the crushing. The normal operation of the machine. According to the hardness of the hammer, we can provide you with the hammer shaft of the corresponding material to ensure the normal operation efficiency of the crusher.
If you don't find the product you need on the website, please email us（info@lyzhili.com）, because we are a customized factory for crusher spare parts.
Feature
The alloy structure cast steel is an iron-carbon alloy formed by adding an appropriate amount of one or more alloy elements on the basis of ordinary carbon steel.
Process technology
According to the different elements added, with appropriate smelting and heat treatment process to obtain high strength, high toughness, high wear resistance, corrosion resistance, low temperature resistance, high temperature resistance, non-magnetic and other related special properties.
Scope of application
It is suitable for producing the wear-resisting spare parts with good mechanical strength and good toughness that are required for various working conditions, and the main steel structure castings with the required dynamic load.
Chemical component
Grade | Chemical component% | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | Cr | Mo | S | P | Ai | |||
| ZG42CrMo | 0.38-0.43 | 0.15-0.35 | 0.75-1.00 | 0.80-1.10 | 0.15-0.25 | <0.04 | <0.035 | - | ||
| ZG35CrMo | 0.32~0.40 | 0.17~0.37 | 0.40~0.70 | 0.80~1.10 | 0.15~0.25 | ≤0.035 | ≤0.035 | - | ||
| ZG38CrMoAl | 0.35~0.42 | 0.20~0.45 | 0.30~0.60 | 1.35~1.65 | 0.15~0.25 | ≤0.04 | ≤0.04 | 0.7~1.1 | ||
| ZG40Cr | 0.37~0.45 | 0.17~0.37 | 0.5~0.8 | 0.8~1.1 | - | - | - | - | ||
| ZG30Mn2SiCrMo | 0.25~0.35 | 0.40~0.80 | 1.20~1.60 | 1.35~1.65 | 0.2~0.5 | ≤0.04 | ≤0.04 | - | ||
Mechanical Property
| Grade | tensile strength （Mpa） | yield strength （Mpa） | Elongation at cross section（%） | reduction of crosssection area（%） | Shock absorption energy（KV2/J） |
|---|---|---|---|---|---|
| ZG42CrMo | ≥1080 | ≥930 | ≥12 | ≥20 | ≥24 |
| ZG35CrMo | ≥985 | ≥835 | ≥12 | ≥20 | ≥24 |
| ZG38CrMoAl | ≥980 | ≥835 | ≥14 | ≥20 | ≥24 |
| ZG40Cr | ≥980 | ≥785 | ≥9 | ≥20 | ≥24 |
| ZG30Mn2SiCrMo | ≥1500 | ≥1300 | ≥3 | - | ≥24 |
